Grounding Pads

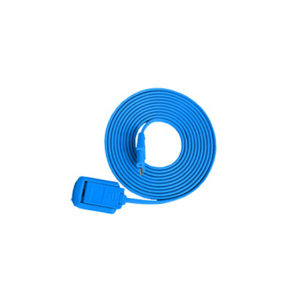

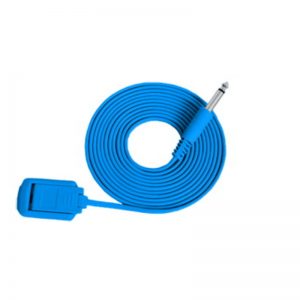

Universal size standard grounding pad for Child/ Adult patients to be used with conventional electrosurgical generators. The pad is made with a skin-friendly soft conductive adhesive designed to fill all skin cavities, ensuring a very low heat build-up of the skin. A soft and flexible polyethylene foam is used as backing material. The polyethylene foam is non-permeable and protects the staff against the hazard of electrical shocks. The pad requires a re-usable cable to connect to the electrosurgical generator
1 pcs/ pouch | 50 pouches/ box | 400 pcs/ ctn
Pouch Size: | 260mm*150mm |
Carton Size: | 580*225*335mm |
Weight: | N/ 10.0 KG | G/ 12.0 KG |

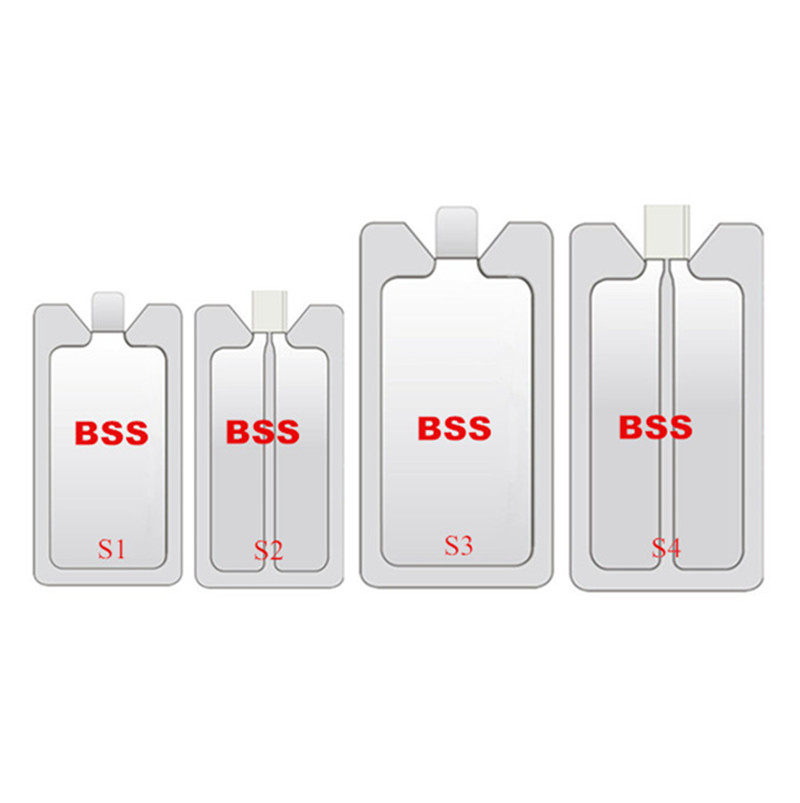

Grounding Pads Without Cable
Item |
Description |
Backing |
Adhesive Area |
Conductive Area |
Dimension |
---|---|---|---|---|---|
S1 |
Child / Biopolar |
Foam |
117.6 sqcm |
74.9 sqcm |
150*90 mm |
S2 |
Child / Biopolar |
Foam |
117.6 sqcm |
69.7 sqcm |
150*90 mm |
S3 |
Adult / Monopolar |
Foam |
194.4 sqcm |
7130 sqcm |
210*100 mm |
S4 |
Adult / Biopolar |
Foam |
194.4 sqcm |
121.5 sqcm |
210*100 mm |
